[dedgren]

Here we go again...



This is the third part of what is planned to be an extended tutorial on fine terraforming techniques.  Part Two can be found here [linkie].  Part Four is here [linkie].  It is recommended, since each part builds on the information provided in previous ones, that you would start at Part One, which is here [linkie], and work your way forward.  On the other hand, far be it for me to tell anyone what to do...

We ended Part Two having arrived here.

#1

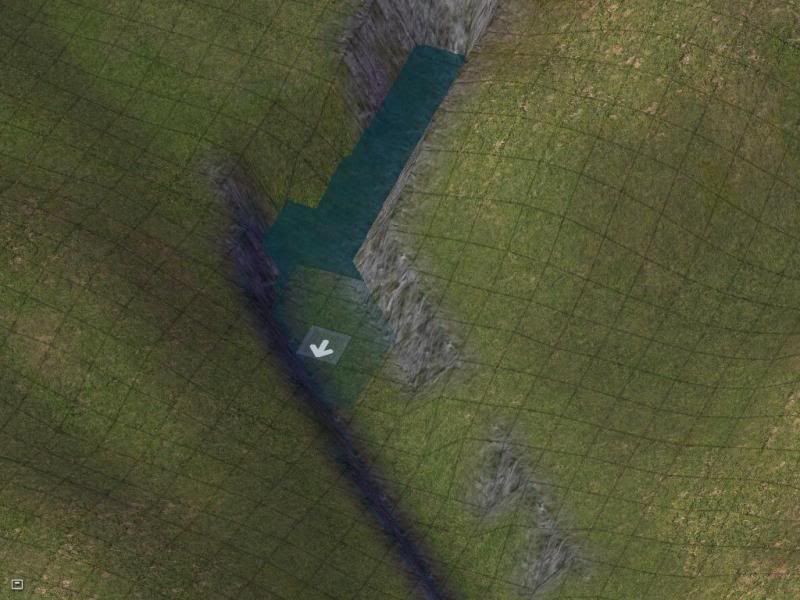

In this part, we'll look at various terraforming tools available to soften the abrupt "banks" of our roughed-in streambed.  I've highlighted these banks in green in the pic below.  We have as a secondary goal the preservation of the "flat" bottom of the streambed marked by the road tiles.

#2


First, let's take a look at the handful of God mode terraforming tools that are available suited to the task at hand.  Specifically, these are the "Erosion" tool, the "Plains" tool, and the "Soften" tool.

n.b.  I mentioned, back in Part One, that the nifty menu arrangement you see here is due to my installation of Jonathan's great "God Terraforming in Mayor Mode Compact" mod, which is available on the STEX here [linkie].  If, for some reason, you don't want to install the mod (and I would find that hard to imagine), you can invoke God mode during a game session by minimizing all your menus back to the control panel, then clicking on the ingame God mode tool icon (the sun to the left of the mayor's hat) while pressing [ ctrl ] and [ alt ] and [ shift ] all at the same time on your keyboard.

We'll check out the Erosion tool first.

#3


After selecting the tool and setting it up in the manner described back in Part One to size=1 force=f1, we position the tooltip over a nice prominent point along the bank.

#4


Let's click once and see what happens.

Wow!  All the nearby road tiles disappeared.  I'll tell you that this is because the Erosion tool lifted, albeit ever so slightly, our streambed, but let's verify this for ourselves.

#5


You'll remember that the elevation of all those road tiles was 250.1 meters/just a few inches over 820 feet.  Here, you see the last tile left intact is the one at 90/123.

#6


Again, here's what it looks like after just a single click of the Erosion tool.

#7


Checking the northwest (top left) corner of gridsquare 90/124, which is the one to the immediate south (toward the bottom of the screen) of gridsquare 90/123, we see that the elevation here hasn't changed, yet the road tile disappeared.

#8


A look at gridsquare 91/125, which is the gridsquare to the southwest (along the diagonal to the bottom right) of gridsquare 90/124, discloses what has changed.  The northwest (top left) corner of 91/125 has been raised 1/10^th of a meter/about four inches, and this corner is shared with gridsquare 90/124.  That's why the road tiles on these gridsquares disappeared.

#9


Even though we know that the Erosion tool is not suitable for our purposes, let's for grins drill down another 20 left-mouse clicks- about five meters/16 feet.

#10


Now the amount of the lift on the gridsquares in the streambed becomes really apparent.

#11


#12


#13


#14


So, the result is the more you level up the bank with the Erosion tool, the more irregular you will leave the streambed below.

Let's move on to the next alternative: the "Plains" tool.  The flyout makes it sound like some sort of wrinkle and aging cream in that it "gently levels and smooths the terrain."

We'll see.

#15


After setting the tool to size=1 force=f1, we position the tooltip and click once.

Whoa!  It's not that gentle.

#16


Next.

The ""Soften" tool promises much the same as the Plains tool.  We'll do the usual- set it to size-1 and force=f1...

#17


...position it on our bank and...

#18


...click once.

Same deal.

#19


Our streambed road tiles are gone.

#20


A quick check with terrainquery indicates that the raising of the streambed is pretty significant.

#21


#22


#23


So, we return to our old friend, the mayor mode "Gouge Valleys" tool.

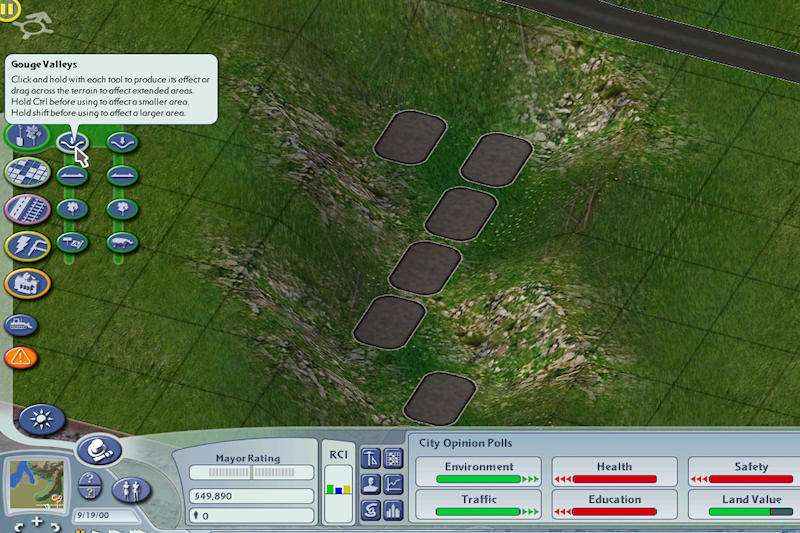

Select the tool, and set it to size=1 and force=f1.

#24


We then position it over our bank, grit our teeth, wince, and...

#25


...click once.

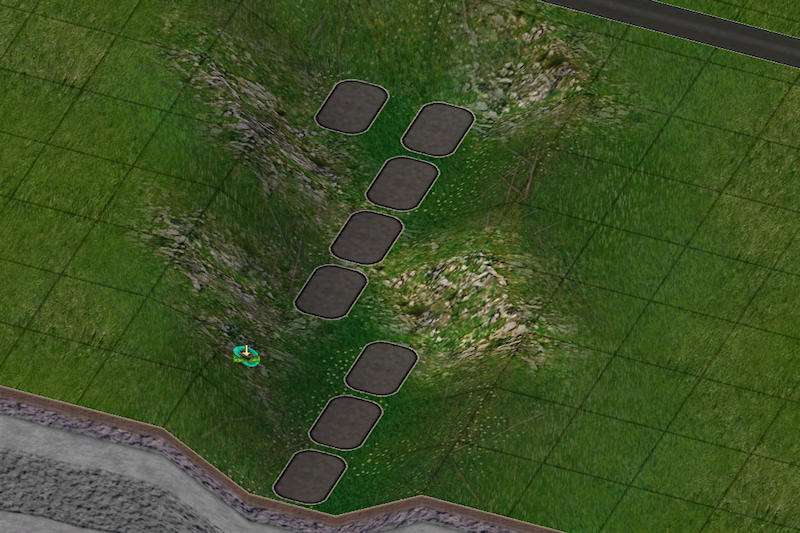

Opening our eyes, we see that our streambed road tiles are all still there.

#26


Even more important, after we left-mouse click another 20 times, the road tiles are still there.

It is clear that the mayor mode Gouge Valley (and, as you will see, its siblings the Raise Terrain and Level Terrain tools) is the fine terraforming tool of choice, in that it has very precise effect on the area that you are working on.

#27

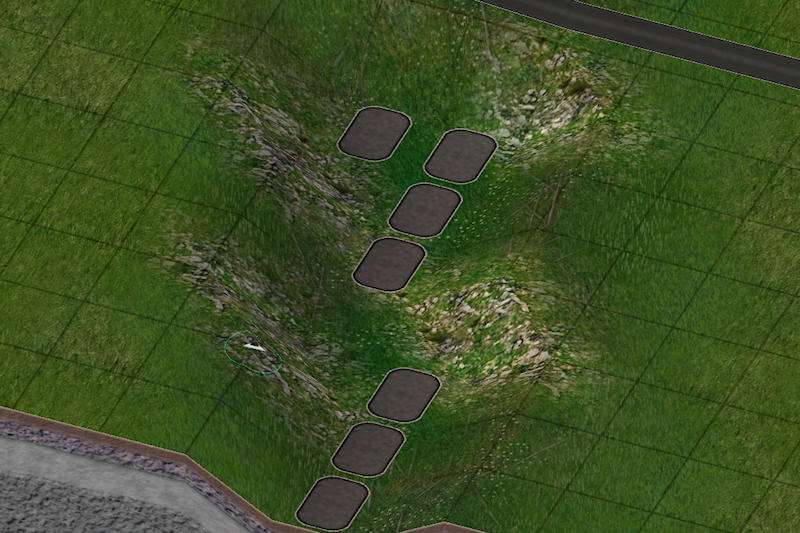

After we apply the Gouge Valleys tooltip to other sharp breaks on the west bank of our streambed excavation, it looks like this.  The bottom of the excavation is still flat and level, as evidenced by the undisturbed road tiles.

#28


Turning off the grid by pressing the [ G ] key, we see that our streambed is really starting to blend in with the surrounding terrain.

#29


In the next section of the tutorial, Part Four [linkie], we'll smooth the other bank, place the culvert and plop some water.  See you there!


David
